This 8ft laser probe is indicated for Endo-Ocular laser photocoagulation treatments in order to provide coagulation during surgical interventions at laser operating wavelength of 500 to 1,100nm.
It is terminated from one side with a connector that attaches the fiber end to the laser source.
From the other side, it is terminated with a handpiece and a 27 gauge stainless steel tubing that holds the tip of the fiber.
A flexible plastic jacket covers and protects the length of the fiber.
Features
Ergonomic and non-slip handpiece design.
27ga tip for faster patient post operative recovery.
Different connectors that suit most laser source models available on the market.
Sterilized by Ethylene Oxide, single-use, latex-free.
Dia 0.41 mm (27ga). Length 2.4 m (8 ft)

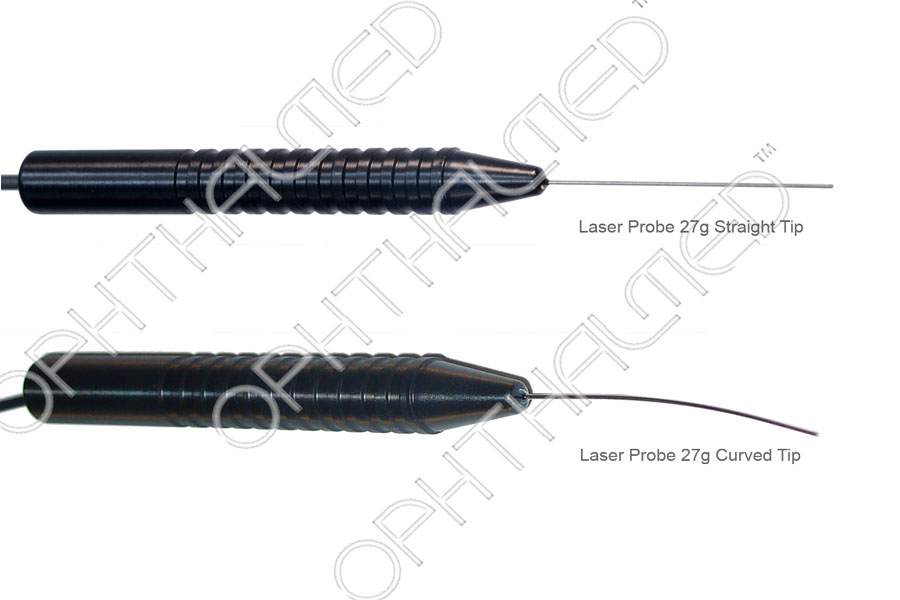

Tips
Click on the
below image for a
close-up of
the tip
variations
for the 27g
laser probe.
Alcon / Zeiss / Ellex
Connector*
SMA 905 connectivity
AA27000
Straight Tip
AA67000
Curved Tip
Iridex
Connector*
AA28000
Straight Tip
AA68000
Curved Tip
DORC (non-USA)*
AA23000 Straight Tip
AA63000
Curved Tip
Quantel Vitra /
Supra
Connector
(Direct)*
AA29000
Straight Tip
AA69000
Curved Tip
Lumenis
Connector*
AA2A000
Straight Tip
AA6A000
Curved Tip
Nidek
Connector -
Threaded*
AA22000
Straight Tip
AA62000
Curved Tip

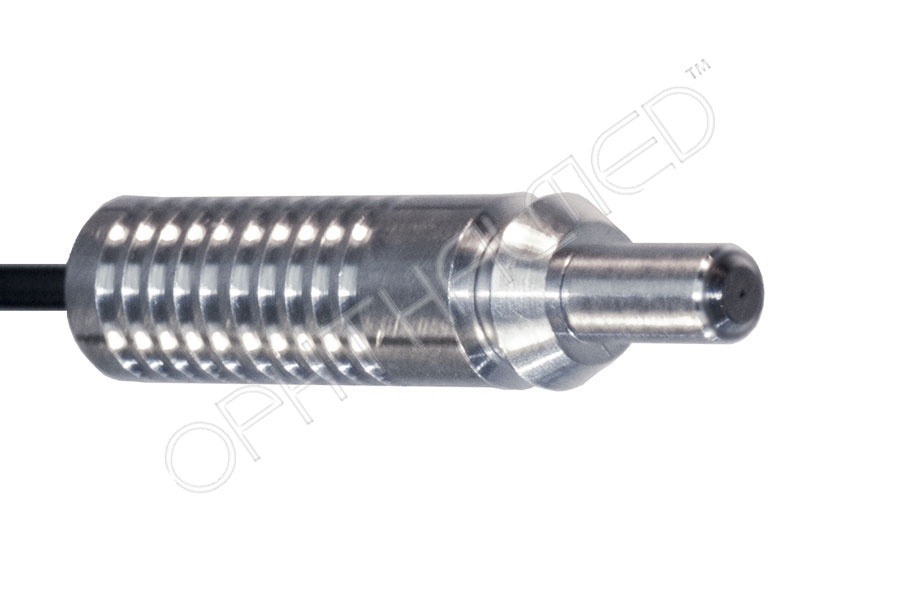

Nidek
Connector -
Push-In*
AA25000
Straight Tip
AA65000
Curved Tip
Lightmed*
AA2B000
Straight Tip
AA6B000
Curved Tip

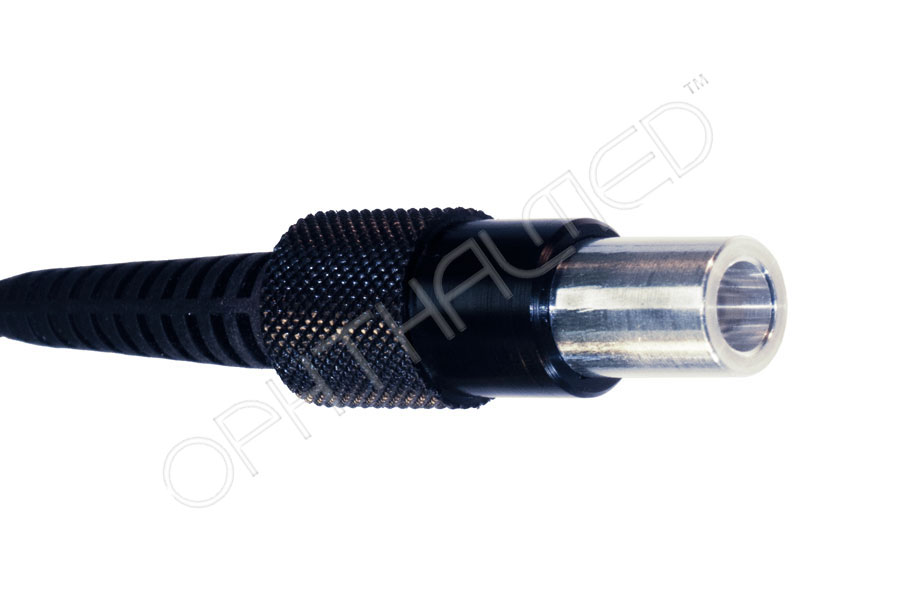

HGM
Connector No Bar
Code*
AA24000
Straight Tip
AA64000
Curved Tip
*Trademarks are property of their respective owners
